Ivenix Line of Administration Sets

Innovative fluid control under typical clinical conditions can help assist in flow consistency and accuracy, and can improve patient safety with free flow protection.

Reference Chart

Primary Administration Sets – Macrobore

Primary Administration Sets – Macrobore
	IFU	Product Code	Description	Priming Volume (mL)	Length (inch)	Drops/mL (GTT)	ID (inch)	OD (inch)	Case Count (Each)
+		SET001325	Dual-Inlet	16	105	15	0.09	0.16	25
SET001325 Dual-Inlet, Low Sorbing Tubing, Needle-free Port, Downstream Y-site (6”), Rotating Luer Lock
+		SET002125	Single-Inlet	16	105	15	0.09	0.16	25
SET002125 Single-Inlet, Low Sorbing Tubing, Rotating Luer Lock
+		SET003225	Dual-Inlet	16	105	15	0.09	0.16	25
SET003225 Dual-Inlet, Low Sorbing Tubing, Needle-free Port, Two Downstream Y-sites (6” and 33”), Rotating Luer Lock

Primary Administration Sets – Microbore

Primary Administration Sets – Microbore
	IFU	Product Code	Description	Priming Volume (mL)	Length (inch)	Drops/mL (GTT)	ID (inch)	OD (inch)	Case Count (Each)
+		SET001925	Dual-Inlet	10	105	60	0.05	0.13	25
SET001925 Dual-Inlet, Microbore, Low Sorbing Tubing, Needle-free Port, Downstream Y-site (6”), Rotating Luer Lock
+		SET003325	Dual-Inlet	10	105	60	0.05	0.13	25
SET003325 Dual-Inlet, Microbore, Low Sorbing Tubing, Needle-free Port, Two Downstream Y-sites (6” and 33”), Rotating Luer Lock
+		SET003425	Single-Inlet	10	105	60	0.05	0.13	25
SET003425 Single-Inlet, Microbore, Low Sorbing Tubing, Rotating Luer Lock

Blood Product Administration Set

Blood Product Administration Set
	IFU	Product Code	Description	Priming Volume (mL)	Length (inch)	Drops/mL (GTT)	ID (inch)	OD (inch)	Case Count (Each)
+		SET001420	Dual Spikes	16	105	15/20	0.09	0.16	20
SET001420 Dual Spikes, 200-micron Filtered Drip Chamber, Dual Inlets, Low Sorbing Tubing, Needle-free Port, Downstream Y-site (6”), Rotating Luer Lock

Epidural Administration Set

Epidural Administration Set
	IFU	Product Code	Description	Priming Volume (mL)	Length (inch)	Drops/mL (GTT)	ID (inch)	OD (inch)	Case Count (Each)
+		SET001625	Single Inlet	10	105	15	0.05	0.13	25
SET001625 Single Inlet, Microbore, No Secondary Access, Low Sorbing Yellow Striped Tubing, Rotating Luer Lock

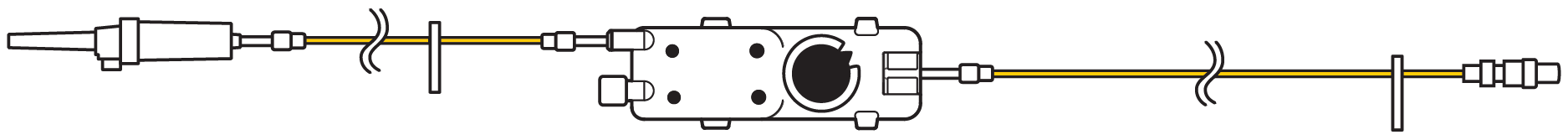

+		SET003025	Single Inlet	10	105	15	0.05	0.13	25
SET003025 Single Inlet, Microbore, No Secondary Access, Low Sorbing Yellow Striped Tubing, NRFit Connector

Ivenix set are not made with natural rubber latex or DEHP. All measurements are approximate.

Resources

Download the latest Ivenix Admin Sets reference chart below.

Download Ivenix Admin Sets Reference Chart PDF ->

Contact Us

For more information, contact your sales representative or call customer service at 855-354-6387
