KabiAccess Non-dedicated Sets
The KabiAccess portfolio of non-dedicated sets includes extension sets, gravity sets, and add-on filters. It provides the most clinically convenient, safe and efficient configurations for your IV systems.
Reference Chart
Short Extension Sets
Order number | Description | ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count | Available |
---|---|---|---|---|---|---|---|
FK20200E | 6” Minibore Extension Set | 0.02 | 0.09 | 6 | 0.3 | 100 | Special order |
FK20201E | 6” Macrobore Extension Set | 0.10 | 0.16 | 6 | 1.2 | 100 | Yes |
FK20203E | 8” Macrobore Extension Set – High Pressure | 0.10 | 0.16 | 8 | 01.2 | 100 | Yes |
FK20210E | 5” Bi-fuse Minibore Extension Set | 0.02 | 0.09 | 5 | 0.5 | 100 | Special order |
FK20211E | 5” Bi-fuse Minibore Extension Set – Bonded NC | 0.02 | 0.09 | 5 | 0.5 | 100 | Special order |
FK20215E | 5” Tri-fuse Minibore Extension Set | 0.02 | 0.09 | 5 | 0.8 | 100 | Special order |
Extension Sets
Order Number | Description | ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count | Available |
---|---|---|---|---|---|---|---|
FK20220E | 18” Macrobore Extension Set – 1 NC | 0.10 | 0.16 | 18 | 2.4 | 100 | Yes |
FK20225E | 18” Macrobore Extension Set | 0.10 | 0.16 | 18 | 2.4 | 100 | Yes |
FK20245E | 32” Macrobore Extension Set – 2 NC | 0.10 | 0.16 | 32 | 5.0 | 48 | Yes |
Filter Extension Sets
Order Number | Description | ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count | Available |
---|---|---|---|---|---|---|---|
FK20251E | 18” Macrobore 0.22 micron Filter Extension Set | 0.10 | 0.16 | 18 | 4.6 | 100 | Yes |
FK20255E | 18” Macrobore 1.2 micron Filter Extension Set | 0.10 | 0.16 | 18 | 4.6 | 100 | Yes |
Gravity Sets
Order Number | Description | ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count | Available |
---|---|---|---|---|---|---|---|
FK30100G | 100″ Macrobore Standard Gravity Set (20 Drop Factor) | 0.10 | 0.16 | 100 | 18.0 | 48 | Yes |
FK30106G | 106″ Macrobore Primary Gravity Set (20 Drop Factor) | 0.10 | 0.16 | 106 | 19.0 | 48 | Special Order |
Syringe Pump Extension Sets
Order Number | Description | ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count | Available |
---|---|---|---|---|---|---|---|
FK50030S | 30” Minibore Extension Set | 0.02 | 0.09 | 30 | 0.5 | 100 | Yes |
FK50060S | 60” Minibore Extension Set | 0.02 | 0.09 | 60 | 1.0 | 100 | Yes |
KabiAccess non-dedicated sets are not made with natural rubber latex or DEHP.
All measurements are approximate.
Gravity and Extension Sets
FK20200E
6” (153mm) Minibore extension set with slide clamp, male luer lock with non-bonded needleless connector
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.02 | 0.09 | 6 | 0.3 | 100 |
FK20201E
6” (153mm) Macrobore extension set with pinch clamp male luer lock with non-bonded needleless connector
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.1 | 0.16 | 6 | 1.2 | 100 |

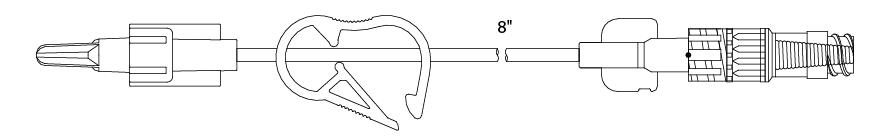

FK20203E
8” (20.32cm) Macrobore High Pressure extension set with purple pinch clamp, male luer lock with bonded needleless connector, 325 PSI.
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.10 | 0.16 | 8 | 1.2 | 100 |

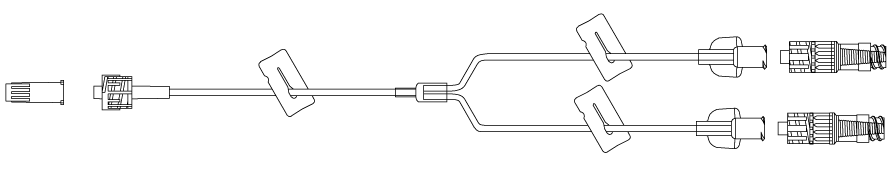

FK20210E
5” (130mm) Bi-fuse Minibore extension set with 3 slide clamps male luer lock and 2 non-bonded needleless connectors
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.02 | 0.09 | 5 | 0.5 | 100 |
FK20211E
5” (130mm) Bi-fuse Minibore extension set with 2 slide clamps male luer lock and 2 nonbonded needleless connectors
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.02 | 0.09 | 5 | 0.5 | 100 |
FK20215E
5” (130mm) Tri-fuse Minibore extension set with 3 slide clamps male luer lock and 3 non-bonded needleless connectors
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.02 | 0.09 | 5 | 0.8 | 100 |
FK20220E
18” (458mm) Macrobore extension set with roller clamp, 1 needleless connector, male luer-lock and female luer
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.10 | 0.16 | 18 | 2.4 | 100 |
FK20225E
18” (458mm) Macrobore extension set with roller clamp, male luer-lock and female luer
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.10 | 0.16 | 18 | 2.4 | 100 |
FK20245E
32” (813mm) Macrobore extension set with slide clamp, 2 needleless Y-site, male luer lock and female luer
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.10 | 0.16 | 32 | 5.0 | 48 |

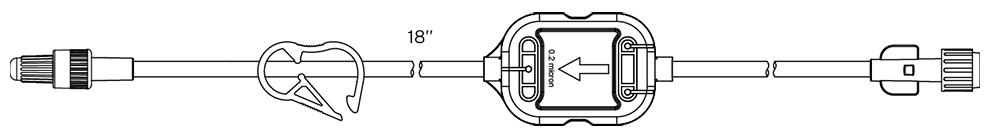

FK20251E
18” (458mm) Microbore extension set with 0.22 Micron Filter pinch clamp, male lure-lock and female luer
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.02 | 0.09 | 5 | ~4.55 | 100 |
FK20255E
18” (458mm) Macrobore extension set with 1.2 Micron Filter, pinch clamp, male lure-lock and female luer.
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.1 | 0.16 | 18 | ~4.55 | 100 |
FK30100G
100″ Macrobore Standard Gravity Set (20 Drop Factor)
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.10 | 0.16 | 100 | 18 | 48 |
FK30106G
106″ Macrobore Primary Gravity Set (20 Drop Factor)
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.10 | 0.16 | 106 | 19 | 48 |
FK50030S
30” Minibore Extension Set
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.02 | 0.09 | 30 | 0.5 | 100 |
FK50060S
60” Minibore Extension Set
ID (inch) | OD (inch) | Length (inch) | Priming Volume (mL) | Case Count |
---|---|---|---|---|
0.02 | 0.09 | 30 | 0.5 | 100 |
Resources
Download the latest non-dedicated sets brochure and reference chart below.
DOWNLOAD Brochure ->
DOWNLOAD Reference Chart ->
