Practically: Engineered For
application flexibility
Our proprietary Volumat Lines blend patient safety, ease of use, and application flexibility in the design of each set when used with our Agilia® Infusion System.
- Color-coded pumping segment helps align the set with the pump tubing guide for proper loading
- The SafeClip is automatically clamped preventing unintentional flow when opening the pump door
- Pumping segment is designed to maintain accuracy for up to 96 hours
- Easily converts to a gravity set
- Needle-free access ports minimize and protect the user from accidental needlesticks
Volumat Line Features
See Volumat Line labeling for additional instructions for use
Volumat Line of Administration Sets Reference Chart
Standard Sets (No secondary access)
| Order Number | Product Code | Description | Priming Volume (mL) | Nominal Length (inch) | Drops / mL | Tubing ID (inch) | Units / Cases | Available |
|---|---|---|---|---|---|---|---|---|
| M46441360 | VL ST10-0 | Standard Set | 25 | 112 | 20 | 0.118 | 30 | Yes |
| M46441375 | VL ST10-X0 | Standard Set, Non-siliconized Spike | 25 | 112 | 20 | 0.118 | 30 | Yes |
| M46441960 | VL ST02-0 | Standard Set, Y-site | 25 | 112 | 20 | 0.118 | 30 | Yes |
| M46441985 | VL ST02-X0 | Standard set, Y-site, non-siliconized spike | 25 | 112 | 20 | 0.118 | 30 | Yes |
Primary Sets
| Order Number | Product Code | Description | Priming Volume (mL) | Nominal Length (inch) | Drops / mL | Tubing ID (inch) | Units / Cases | Available |
|---|---|---|---|---|---|---|---|---|
| M46445660 | VL PR42-11 | Primary Set, 2 Y-sites | 25 | 112 | 20 | 0.118 | 30 | Yes |
| M46445690 | VL PR42-12 | Primary Set, 3 Y-sites | 25 | 112 | 20 | 0.118 | 30 | Yes |
| M46445780 | VL PR44-12 | Primary Set, 3 Y-sites | 25 | 112 | 20 | 0.118 | 30 | Yes |
Filter Sets
| Order Number | Product Code | Description | Priming Volume (mL) | Nominal Length (inch) | Drops / mL | Tubing ID (inch) | Units / Cases | Available |
|---|---|---|---|---|---|---|---|---|
| M46442460 | VL PN02-1 | Standard Set, Y-site, 1.2-micron Filter, PVC Free | 25 | 114 | 20 | 0.118 | 30 | Yes |
| M46444160 | VL ON72-1 | Primary Set, 2 Y-sites, 0.2-micron Filter, PVC Free | 26 | 114 | 20 | 0.118 | 30 | Yes |
| M46444175 | VL ON72-X1 | Primary Set, Y-site, 0.2-micron Filter, Non-siliconized Spike, PVC Free | 26 | 114 | 20 | 0.118 | 30 | Yes |
| M46445860 | VL PR72-11 | Primary Set, 2 Y-sites, 0.2-micron Filter | 27 | 114 | 20 | 0.118 | 30 | Yes |
Burette Sets
| Order Number | Product Code | Description | Priming Volume (mL) | Nominal Length (inch) | Drops / mL | Tubing ID (inch) | Units / Cases | Available |
|---|---|---|---|---|---|---|---|---|
| M46445260 | VL PA92-1 | Burette Set, 20 drop factor | 25 | 118 | 20 | 0.118 | 10 | Yes |
| M46445270 | VL PA92-2 | Burette Set, 60 drop factor | 20 | 118 | 60 | 0.118 | 10 | Yes |
Specialty Sets
| Order Number | Product Code | Description | Priming Volume (mL) | Nominal Length (inch) | Drops / mL | Tubing ID (inch) | Units / Cases | Available |
|---|---|---|---|---|---|---|---|---|
| M46443450 | VL SP62-1 | Standard Set, Y-site, PVC Free | 25 | 112 | 20 | 0.118 | 30 | Yes |
| M46445475 | VL SP40-11 | Primary Set, 2 Y-sites, PVC Free, Reduced length | 20 | 81 | 20 | 0.118 | 30 | Yes |
| M46445670 | VL PR42-21 | Primary Set, 3 Y-sites | 25 | 112 | 20 | 0.118 | 30 | Special order |
Transfusion Sets
| Order Number | Product Code | Description | Priming Volume (mL) | Nominal Length (inch) | Drops / mL | Tubing ID (inch) | Units / Cases | Available |
|---|---|---|---|---|---|---|---|---|
| M46443160 | VL SP22-0 | Transfusion set, Dual Spike | 30 | 114 | 20 | 0.118 | 30 | Yes |
Secondary Sets
| Order Number | Product Code | Description | Priming Volume (mL) | Nominal Length (inch) | Drops / mL | Tubing ID (inch) | Units / Cases | Available |
|---|---|---|---|---|---|---|---|---|
| M77460051 | VL SL00-X0 | Secondary Set, Non-siliconized Spike | 12 | 35 | 20 | 0.118 | 40 | Yes |
| M77460052 | VL SL00-XP | Secondary Set, Non-siliconized Spike, Set not made with PVC | 10.5 | 27 | 20 | 0.118 | 40 | Yes |
Volumat Lines are not made with natural rubber latex or DEHP.
All measurements are approximate.
Volumat Line of Administration Sets
For use with Agilia Infusion System
M46441360
Standard Pump Set with convertible piercing pin, roller clamp, calibrated silicone pumping segment with SafeClip, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |
M46441375
Standard Pump Set with non-siliconized spike, convertible piercing pin, roller clamp, calibrated silicone pumping segment with SafeClip, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |
M46441960
Standard Pump Set with convertible piercing pin, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp, needle-free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |
M46441985
Standard Pump Set with non-siliconized spike, convertible piercing pin, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp,
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |
M46445660
Primary Pump Set with convertible piercing pin, pinch clamp, backcheck valve, needle free port, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp, needle-free port, rotating male.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |
M46445690
Primary Pump Set with convertible piercing pin, pinch clamp, backcheck valve, needle free port, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp, 2 needle-free ports, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |
M46445780
Primary Pump Set with convertible piercing pin, pinch clamp, backcheck valve, needle free port, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp, 2 needle-free ports 35” apart, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |
M46442460
Standard Filter Pump Set with convertible piercing pin, roller clamp, calibrated silicone pumping segment with SafeClip, downstream 1.2 micron filter, pinch clamp, needle-free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 114 | 20 | 0.118 | 30 |
M46444160
Standard Filter Pump Set PVC free with convertible piercing pin, roller clamp, calibrated silicone pumping segment with SafeClip, downstream 0.2 micron filter, pinch clamp, needle-free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 114 | 20 | 0.118 | 30 |
M46444175
Standard Filter Pump Set PVC free with non-siliconized spike, convertible piercing pin, roller clamp, calibrated silicone pumping segment with SafeClip, downstream 0.2 micron filter, pinch clamp, needle-free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 114 | 20 | 0.118 | 30 |
M46445860
Primary Filter Pump Set with convertible piercing pin, non-DEHP tubing, pinch clamp, backcheck valve, needle-free port, roller clamp, calibrated silicone pumping segment with SafeClip, downstream 0.2 micron filter, pinch clamp, needle-free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 114 | 20 | 0.118 | 30 |
M46445260
Burette Pump Set with piercing pin, 150 mL burette, 20 drops/mL, needle free port, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp, needle-free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 114 | 20 | 0.118 | 10 |
M46445270
Burette Pump Set with piercing pin, 150 mL burette, 60 drops/mL, needle free port, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp, needle-free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 250 | 118 | 60 | 0.118/0.098 | 10 |
M46443450
Standard Pump Set, PVC free with convertible piercing pin, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp, needle-free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |

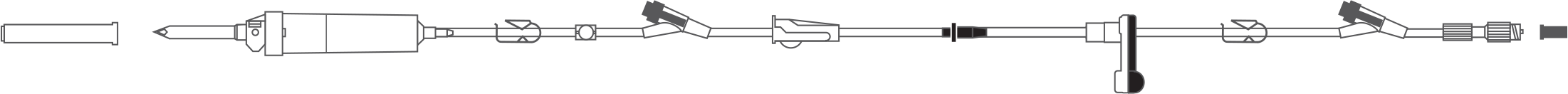

M46445475
Primary Pump Set PVC free with non-siliconized convertible piercing pin, pinch clamp, backcheck valve, needle free port, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp, needle-free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |
M46445670
Primary Pump Set with convertible piercing pin, pinch clamp, backcheck valve, 2 needle free ports, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp, needle-free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |
M46443160
Transfusion Pump Set with dual nonvented spikes, 2 roller clamps, upstream 200 micron filter, roller clamp, calibrated silicone pumping segment with SafeClip, downstream pinch clamp, needle free port, rotating male luer lock.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 25 | 112 | 20 | 0.118 | 30 |
M77460051
Volumat Secondary Set with non-siliconized spike, convertible piercing pin, roller clamp, rotating male luer lock, Hanger.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 12 | 35 | 20 | 0.118 | 40 |
M77460052
Volumat Secondary Set not made with PVC with non-siliconized spike, convertible piercing pin, roller clamp, rotating male luer lock, Hanger.
| PV (mL) | Nominal Length (inch) | Drops/mL | Tubing ID (inch) | Units/Case |
|---|---|---|---|---|
| 10.5 | 27 | 20 | 0.118 | 40 |
Volumat Lines are not made with natural rubber latex or DEHP. All measurements are approximate.
Set Loading
- Align the fully primed administration set horizontally along the tube guides so that the green connector is on the right, and the SafeClip (blue anti-free-flow clamp) is on the left.
- Insert the green connector into the green slot.
- Guide the SafeClip (blue clamp) into the blue slot, with the spherical hinge on top.
- Push the SafeClip to move the spherical hinge into place.
- Check that the tubing is inserted in the left tube guide.
The Volumat Line of administration sets with color-coded connectors aids in loading the pump segment.
SafeClip
The Volumat Line of administration sets can be used for gravity infusion by opening the SafeClip:
- Ensure the roller clamp is in the closed position.
- Push the blue clip to open position.
- Use the roller clamp on the administration set to control gravity flow.
The SafeClip is automatically closed when the Agilia door is opened, providing passive free flow protection.
Resources
Download the latest Volumat Line of administration sets brochure and Sets Reference chart below.
DOWNLOAD Volumat Line Brochure ->
DOWNLOAD Sets Reference Chart ->
